Public Hall; Connecting a Diesel Generator to a 32A Plug

This procedure outlines the essential steps for safely connecting a diesel generator to a 32 A plug at the Yackandandah Public Hall. It is designed to ensure that the process is conducted efficiently and safely, minimizing any risk to personnel or equipment. Follow these guidelines to maintain operational integrity and safety.


  1. 1

    Verify Equipment Readiness

    Check that the battery is not isolated. The battery is located on the side of the generator away from the main panel.


  2. 2

    Position the Generator

    Position the generator near the generator connection point at the side of the public hall at an angle so that the exhaust points away from the foot traffic if possible.

  3. 3

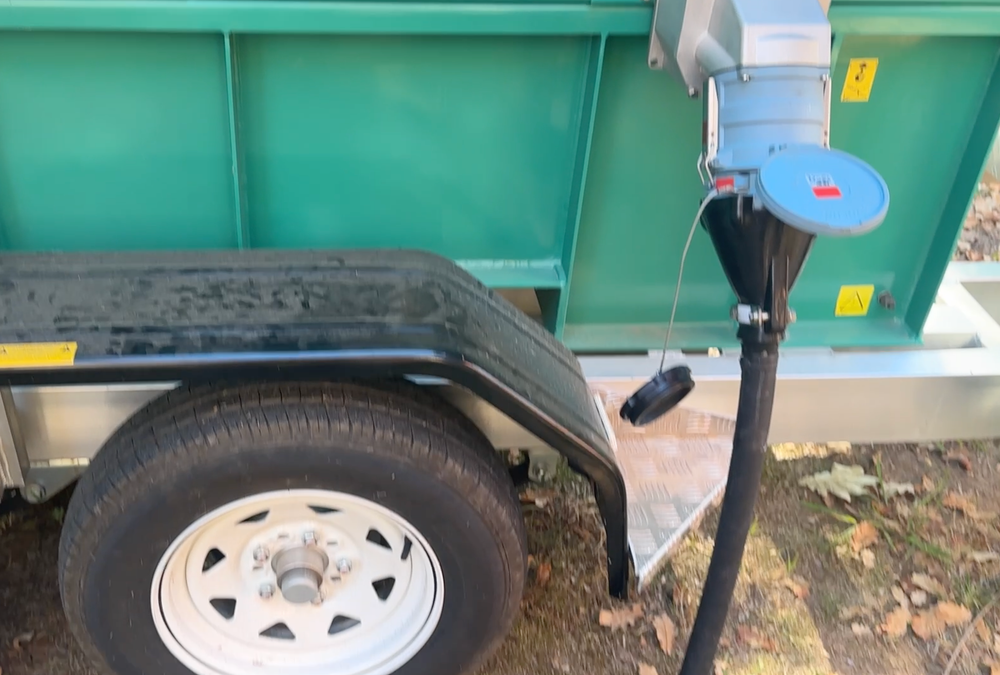

    Connect the Power Cable

    Carefully connect the power cable to the 32 A industrial power socket and ensure it is also securely connected at the generator end. Ensure both connections are firm and secure to prevent any accidental disconnection

    The generator connection point is very difficult to fit. We have had the pins snap. Work to fit the cable at the same angle as the connection point and then rotate and clip on.
  4. 4

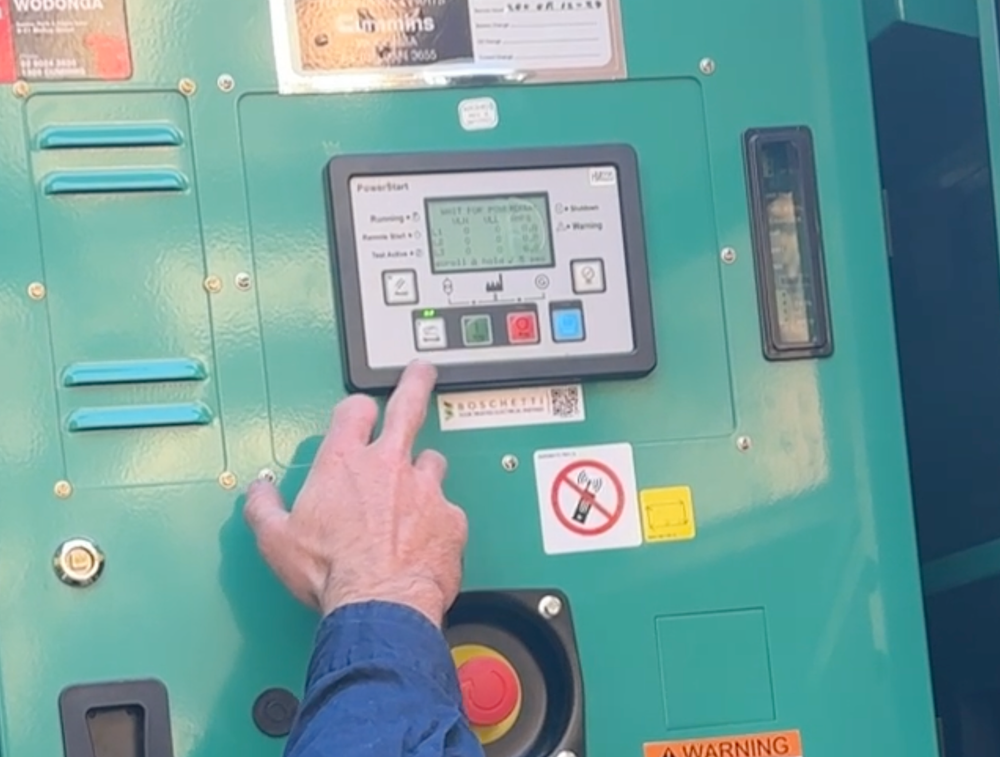

    Start the Generator

    First, ensure that the safety stop is not active. Then press the manual mode button (denoted by a small hand icon 🤚 on the UI) and subsequently press the manual start button (also denoted by a small hand icon 🤚 on the UI).


  5. 5

    Check Voltage Balance

    Once the generator is started, check that the voltages are balanced. Look for balanced on all three phases. At this point, there is no load on the generator as the switchboard hasn't been switched to generator mode yet.
  6. 6

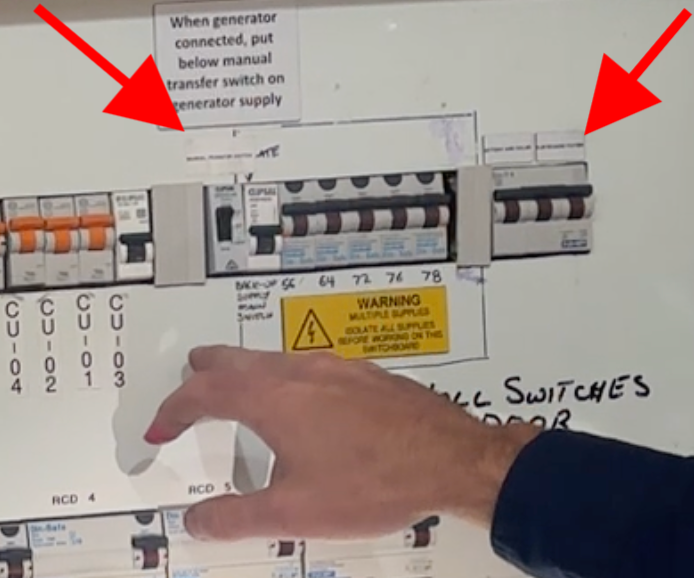

    Shed the Load

    Switch off all loads to allow for a controlled reintroduction of power once the generator is operational.
  7. 7

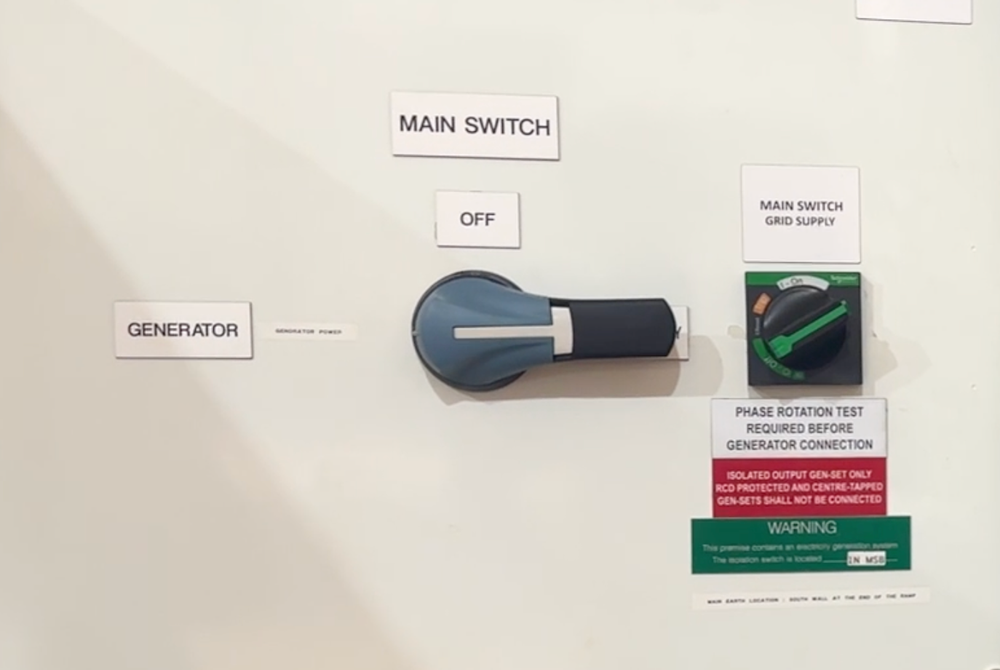

    Turn Off the Mains Power Switch

    Go to the switchboard and turn off the mains power switch (Main Switch Grid) to ensure the generator can take over without interference.

  8. 8

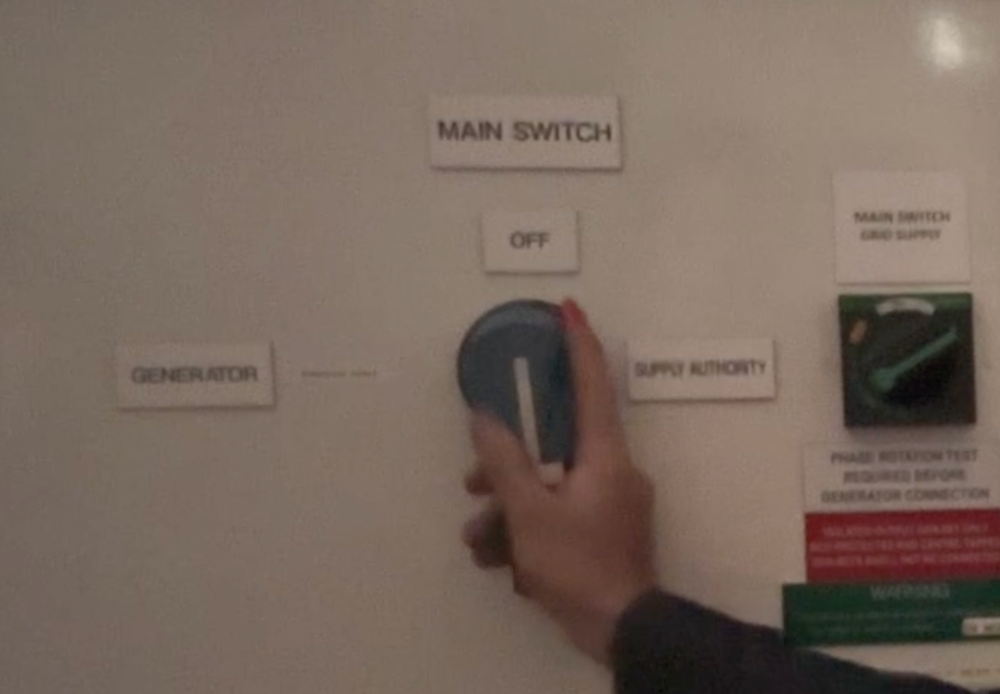

    Switch to Generator Power

    Use the Manual transfer switch (Generator switch in diagram) to disconnect from the mains and connect to the generator, preparing to power the hall from the generator.

    Note that the handle points away from the direction you ​intend.
  9. 9

    Power the Hall from the Generator

    Turn on the main switch to the generator supply so that power now flows from the generator to the school. We need to bring back the loads that were shed earlier.
  10. 10

    Reintroduce Loads in a Controlled Fashion

    Gradually bring back the loads to ensure a stable and controlled power supply from the generator.

    It is important that the generator remains balanced, you can have a second set of eyes checking the generator display
